The right light.
Precise control.
Explore our lighting and control solutions, purpose-built for poultry environments.
AGROLUME BY OVERDRIVE01 / LED LIGHTING

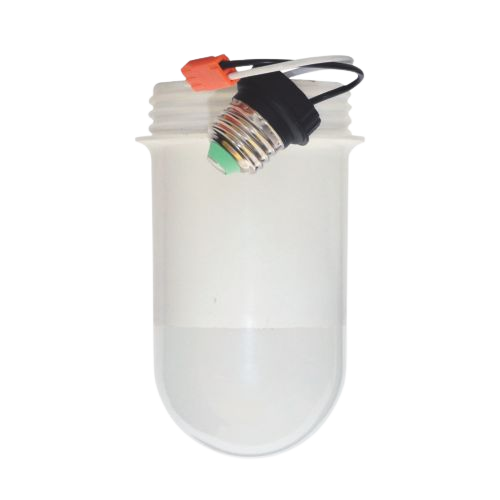

OVERDRIVE® EH80
OVERDRIVE® EH80LIGHTING FOR DEMANDING ENVIRONMENTS
EH80
LED Luminaire
A lightweight, dimmable LED bulb designed to replace compatible jelly jar lighting. Its glass-free construction resists vibration and impact, while a fin-free heat sink helps reduce dust and insect accumulation for easier cleaning.
5000K5–100% dimmingIP66 rated
Enquire about this product ↗PRODUCT FEATURES
Designed for everyday demands.
- Threaded neck adapts to most jelly jar fixtures; E26 wired base included.
- Uniform light distribution with two beam angle options.
- Built-in 2500V surge protection.
- Glass-free, vibration and impact-resistant construction.
- Suitable for wet locations and environments with dust, high humidity and corrosion exposure.
- Heat sink designed to maintain a low LED operating temperature.
- No UV or mercury; flicker-free operation as listed by the manufacturer.
- High power factor and low total harmonic distortion.
Installation options +
- Wall-mount attachment with junction box.
- Wall-mount attachment with photo sensor and junction box.
- Ceiling / roof-mount attachment with junction box and 3/4-inch and 1-inch knockouts.
Warranty, ratings & efficiency +
The published product information lists a 5-year limited manufacturer warranty, ETL/cETL, NEMA-4X and IP66 ratings, and ETL/ES and Energy Star approvals. It also lists energy savings of up to 80%. Confirm the applicable model, certification, warranty terms and comparison baseline with our team.
AT A GLANCE
Technical specifications
- Colour temperature
- 5000K
- Initial light output
- 2,160 lm
- Dimming range
- 5–100%
- Average life
- 50,000 hours
- Overall length
- 5.28 inches
- Diameter
- 4.13 inches
- Operating temperature
- −4°F to 113°F
- Wattage
- Confirm selected model
Please confirm the required wattage and electrical compatibility with our team before ordering.
02 / DIMMING & CONTROL

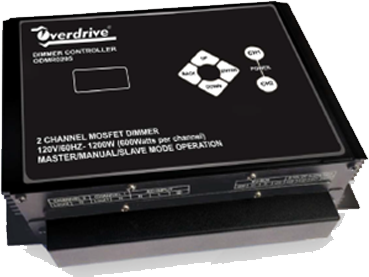

OVERDRIVE® ODMR0210
OVERDRIVE® ODMR0210TWO ZONES. INDEPENDENT SCHEDULES.
ODMR0210
Dimmer Controller
A MOSFET dimmer and controller for precise low-level dimming and lamp re-ignition. Two output channels let you run independent lighting schedules, illuminating or dimming two zones simultaneously.
Designed for use with Overdrive dimmable bulbs for optimum performance and long life.
Dual output zonesMOSFET controlOLED display
Enquire about this product ↗FLEXIBLE OPERATION
Three ways to take control.
Direct control using the keypad.
0–10V DC analogue voltage control.
Protection & functionality +
- Fully integrated digital system for precise, consistent dimming.
- Memory and ISP functions; EU-BUS protocol support.
- 4kV surge protection, over-voltage and short-circuit protection.
- Replaceable output fuses.
- MOSFET control reduces dimmer power loss and runs cooler.
AT A GLANCE
Controller specifications
- Model
- ODMR0210
- Control technology
- MOSFET
- Output zones
- 2 independent zones

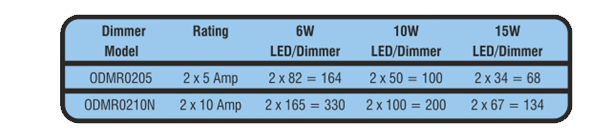

- Maximum current
- 10A per channel
- Maximum load at 120V
- 1,200W per channel
- Display
- 1.3-inch OLED
- Operating modes
- Master / Manual / Slave
- Slave input
- 0–10V DC
The listed 1,200W load applies at 120V. Confirm suitability for your supply voltage and installation with our team.
03 / FEEDER LIGHTING

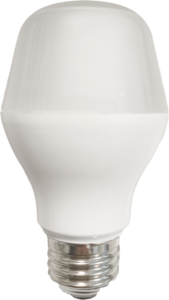

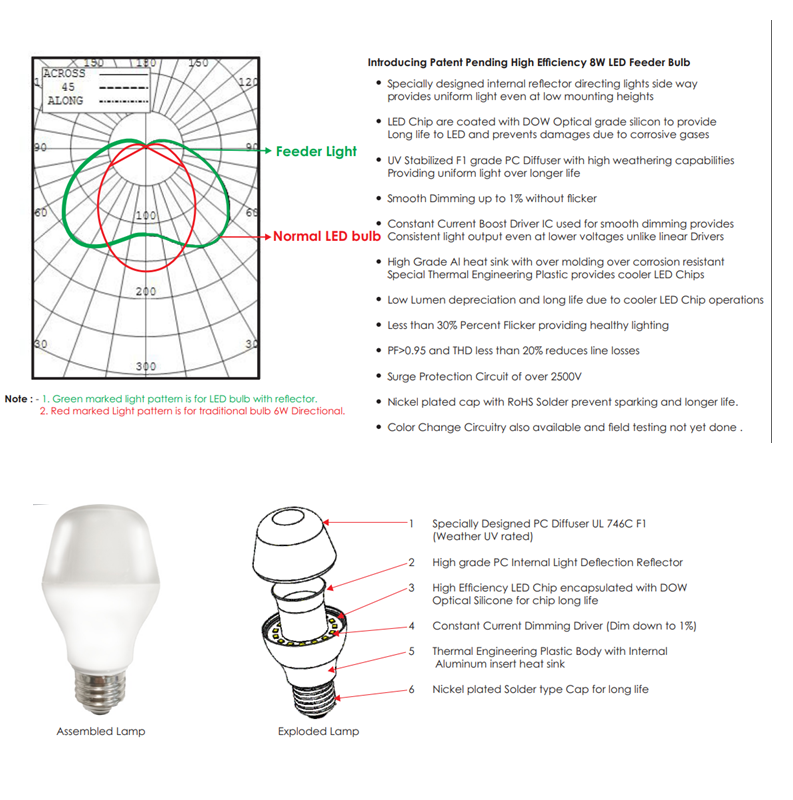

AGROLUME FEEDER LIGHT
AGROLUME FEEDER LIGHTDEDICATED FEEDER ILLUMINATION
Feeder
Light
A dedicated lighting option for poultry feeding installations. Explore the listed output and colour temperature, and talk to our team about suitability for your farm.
- Power
- 8W
- Light output
- 860 lm
- Luminous efficacy
- 107 lm/W
- Colour temperature
- 5000K
NEED HELP CHOOSING?
A lighting solution starts with your farm.
Share your layout, supply voltage and control requirements with our team.
LET’S WORK TOGETHER
Let’s plan
your lighting.
Have a project in mind? Share your requirements
with the AgroLume team.
